Kia Forte: Engine Control System / Camshaft Position Sensor (CMPS)
Description and operation

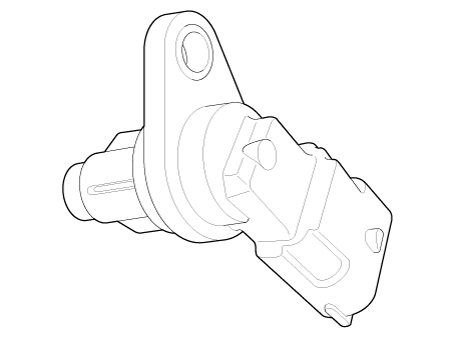

Camshaft Position Sensor (CMPS) is a hall sensor and detects the camshaft position
by using a hall element.
It is related with Crankshaft Position Sensor (CKPS) and detects the piston position
of each cylinder which the CKPS can't detect.
The CMPS is installed on engine head cover and uses a target wheel installed
on the camshaft. The Cam Position sensor is a hall-effect type sensor. As the target
wheel passes the Hall sensor, the magnetic field changes in the sensor. The sensor
then switches a signal which creates a square wave.

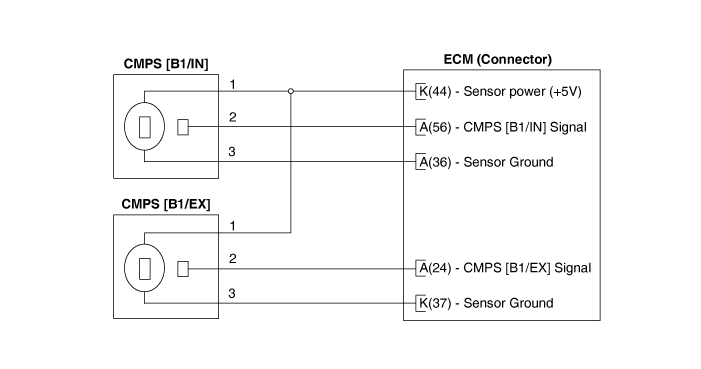

Schematic diagrams

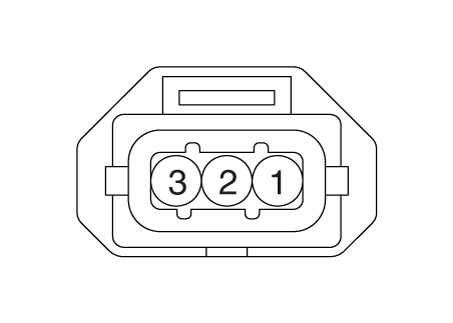

Harness Connector
Repair procedures
| 1. |
Check the signal waveform of the CMPS and CKPS using the KDS.
|
Specification: Refer to “DTC guide”
|
|
| • |
DON’T remove the camshaft position sensor while the engine is
running or right after engine is turned off. The part and engine
oil is hot and can cause burns.
|
|
| 1. |
Turn the ignition switch OFF and disconnect the battery negative (-)
terminal.
|
| 2. |

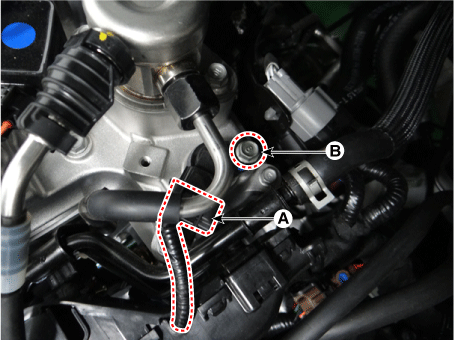

Disconnect the camshaft position sensor connector (A).
|
| 3. |
Remove the sensor by loosening the mounting bolt (B).
|
Camshaft position sensor mounting bolt:
7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
|
|
| 4. |
Install in the reverse order of removal.
| •
|
Install the component with the specified torques.
|
| •
|
Note that internal damage may occur when the component
is dropped. If the component has been dropped, inspect before
installing.
|
| •
|
Apply the engine oil to the O-ring.
|
| •
|
Insert the sensor in the installation hole and be careful
not to damage.
|
| •
|
Be careful not to damage the sensor housing and the connector.
|
| •
|
Be careful not to damage the O-ring.
|
|
|
| 1. |
Turn the ignition switch OFF and disconnect the battery negative (-)
terminal.
|
| 2. |

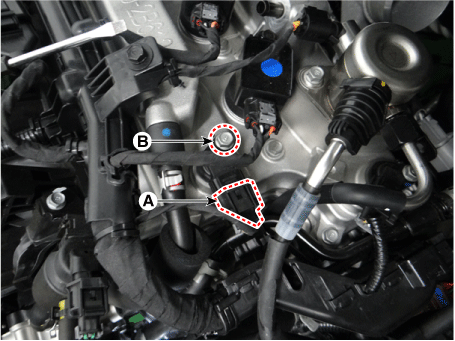

Disconnect the camshaft position sensor connector (A).
|
| 3. |
Remove the sensor by loosening the mounting bolt (B).
|
Camshaft position sensor mounting bolt:
7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
|
|
| 4. |
Install in the reverse order of removal.
| •
|
Install the component with the specified torques.
|
| •
|
Note that internal damage may occur when the component
is dropped. If the component has been dropped, inspect before
installing.
|
| •
|
Apply the engine oil to the O-ring.
|
| •
|
Insert the sensor in the installation hole and be careful
not to damage.
|
| •
|
Be careful not to damage the sensor housing and the connector.
|
| •
|
Be careful not to damage the O-ring.
|
|
|
