Specifications
Specifications

Item
Specified
Type
ON/OFF
Operating condition
Reverse gear
Operating voltage
10V - 15V
Operating temperatures
-30°C to 100°C [-30°F to 212°F]"

Components and components location
Component Location

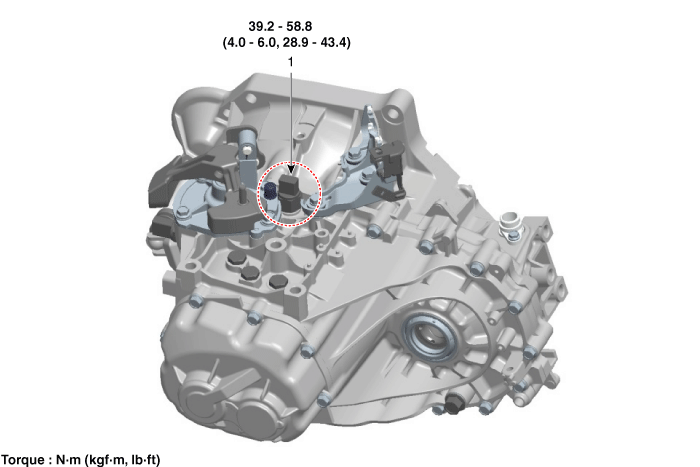

1. Back-up lamp switch


Description and operation
Description

Detects the shift operation to the reverse gear.

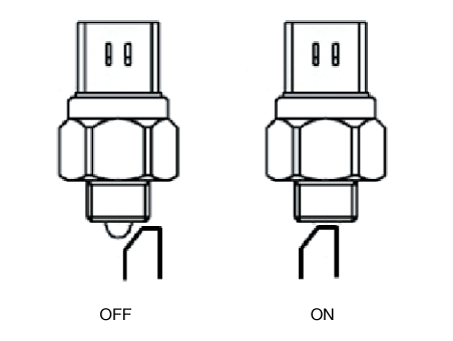

When the transaxle is in the reverse condition, the reverse shift rug turns the back-up lamp switch onby pressing a shaft part of the switch.

Repair procedures
Inspection
1.

Remove the air cleaner assembly and air duct.

(Refer to Engine Mechanical System - "Air Cleaner")

2.

Remove the battery and battery tray.

(Refer to Engine Electrical System - "Battery")

3.

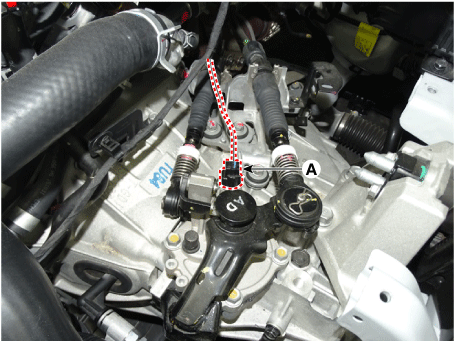

Disconnect the back up lamp switch connector (A).

4.

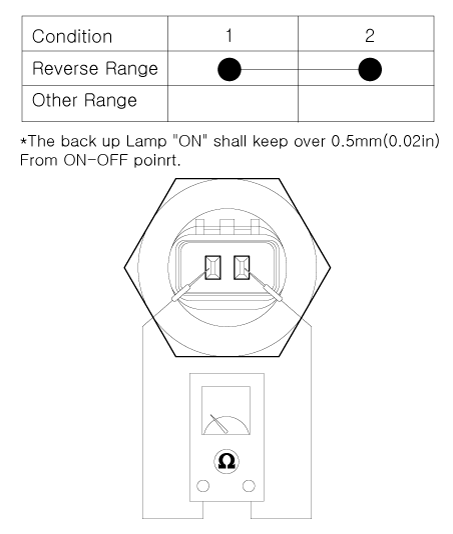

Check the continuity between power terminal and signal terminal.

Removal
1.

Remove the air cleaner assembly and air duct.

(Refer to Engine Mechanical System - "Air Cleaner")

2.

Remove the battery and battery tray.

(Refer to Engine Electrical System - "Battery")

3.

Disconnect the back-up lamp switch connector (A).

4.

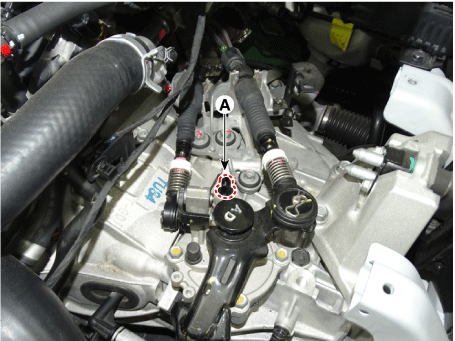

Remove the back up lamp switch (A).

Tightening torque :

39.2 - 58.9 N·m (4.0 - 6.0 kgf·m, 28.9 - 43.4 lb·ft)

Installation
1.

Install in the reverse order of removal.



The back-up lamp switch must be replaced with new one. (Do not reuse it.)
