Kia Forte: Automatic climate control system / Automatic heating and air conditioning

Kia Forte 2019-2021 (BD) Owners Manual / Features of your vehicle / Automatic climate control system / Automatic heating and air conditioning

1. Press the AUTO button. The modes, fan speeds, air intake and air-conditioning will be controlled automatically by setting the temperature.

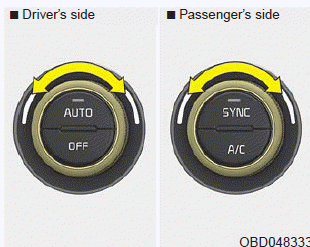

2. Turn the temperature control knob to the desired temperature.

✽ NOTICE

✽ NOTICE

Never place anything over the sensor located on the instrument panel to ensure better control of the heating and cooling system.

Automatic climate control system
1. Driver`s temperature control knob 2. AUTO (automatic control) button 3. Front windshield defroster button 4. Rear window defroster button 5. Air conditioning button 6. Air intake contro ...

Manual heating and air conditioning
The heating and cooling system can be controlled manually by pressing buttons or turning knob(s) other than the AUTO button. In this case, the system works sequentially according to the orde ...
