Kia Forte: Interior lights / Room & Map lamps

Kia Forte 2019-2021 (BD) Owners Manual / Features of your vehicle / Interior lights / Room & Map lamps

Room lamp

■ Type A

■ Type B

: The light stays on at all times.

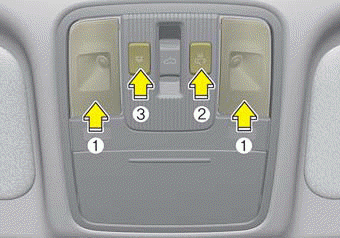

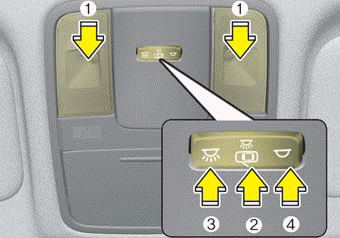

Map lamp

■ Type A

■ Type B

• Press the lens (1) to turn ON the map lamp.

To turn the map lamp OFF, press the lens (1) again.

• (2) : DOOR mode

- The map lamp and room lamp come on when a door is opened. The lamps go out after approximately 30 seconds.
- The map lamp and room lamp come on for approximately 30 seconds when doors are unlocked with a transmitter or smart key as long as the doors are not opened.
- The map lamp and room lamp will stay on for approximately 20 minutes if a door is opened with the ignition switch in the ACC or LOCK/OFF position.
- The map lamp and room lamp will stay on continuously if the door is opened with the ignition switch in the ON position.
- The map lamp and room lamp will go out immediately if the ignition switch is changed to the ON position or all doors are locked.
- To turn off the DOOR mode, press the DOOR button (2) once again (not pressed).

✽ NOTICE

The DOOR mode and ROOM mode can not be selected at the same time.

Front Room Lamp:

• Type A

(3): Press this switch to turn the front and rear room lamps on.

(4): Press this switch to turn the front and rear room lamps off.

• Type B

(3): Press this switch to turn the front and rear room lamps on and off.

Interior lights
Do not use the interior lights for extended periods when the engine is not running as this may cause battery discharge. WARNING - Interior Lights Do not use the interior lights when drivin ...

Trunk room lamp
The trunk room lamp comes on when the trunk is opened. ✽ NOTICE The trunk room lamp comes on as long as the trunk lid opens. To prevent unnecessary battery drain, close the trunk lid sec ...
