Kia Forte: AVN System / Mic

Kia Forte 2019-2020 (BD) Service Manual / Body Electrical System / AVN System / Mic

Repair procedures
Inspection
1.

Disconnect the negative (-) battery terminal.

2.

Remove the overhead console lamp.

(Refer to Lighting System - "Overhead Console Lamp")

3.

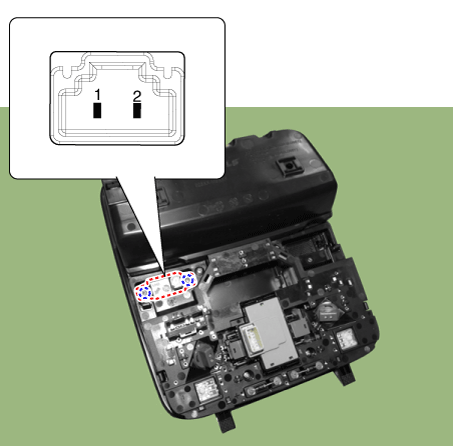

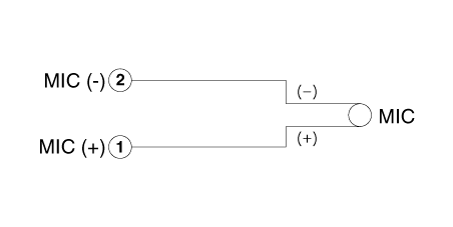

Check the continuity of between terminals.

Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the overhead console lamp.

(Refer to Lighting System - "Overhead Console Lamp")

3.

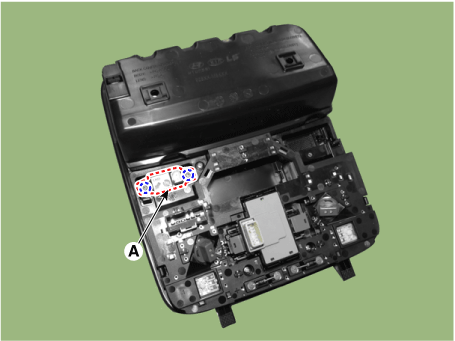

Remove the handsfree mic (A) after loosening the screws.

Installation
1.

Install in the reverse order of removal.
