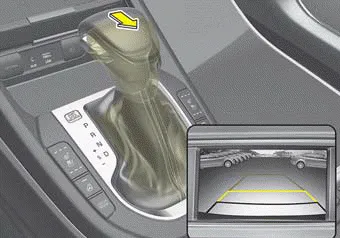

The rear view monitor will activate with the ignition switch ON and the shift lever in the R (Reverse) position.

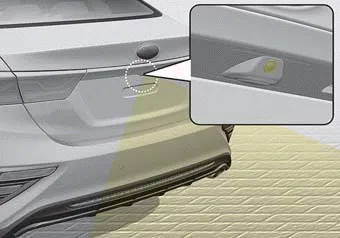

The system is a supplemental system that shows the area behind the vehicle through the audio screen while backing up.
WARNING - Backing & using camera
Never rely solely on the rear view camera. You must always use other methods of viewing the area behind you, including looking over both shoulders as well as continuously checking all three rear view mirrors. Due to the difficulty of ensuring that the area behind you remains clear, always back-up slowly and stop immediately if you suspect that a person, and especially a child, might be behind you.
The reverse parking distance warning may not operate properly when: 1. Moisture is frozen to the sensor. (It will operate normally once the moisture clears.
Battery saver function • The purpose of this feature is to prevent the battery from being discharged if the lights are left in the ON position.
If the position lamp + DRL (LED) (1) does not operate, have the vehicle checked by an authorized Kia dealer. The LED lamp cannot be replaced as a single component because it is an integrated unit. The LED lamp has to be replaced with the unit.
1. Open the trunk lid. 2. Remove the lamp assembly by using a flat-blade screwdriver. 3. Remove the cover from the lamp assembly. 4. Remove the bulb by pulling it straight out. 5. Install a new bulb in the socket. 6. Install the cover to the lamp assembly.
