Kia Forte: Blind-Spot Radar / Blind-Spot Radar Warning Indicator

Kia Forte 2019-2023 (BD) Service Manual / Body Electrical System / Blind-Spot Radar / Blind-Spot Radar Warning Indicator

Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

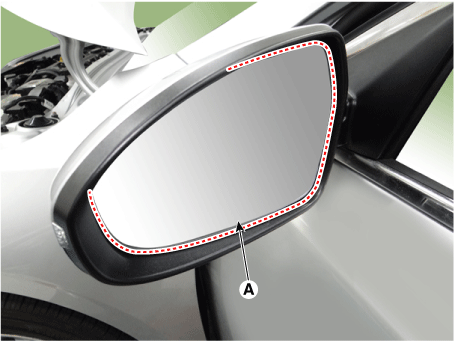

Remove mirror (A) to the direction as shown in the picture using (-) screw driver.



Apply force around the center of mirror because to apply force the end of mirror will break it.

Be careful not to damage mirror and fixing clips.

3.

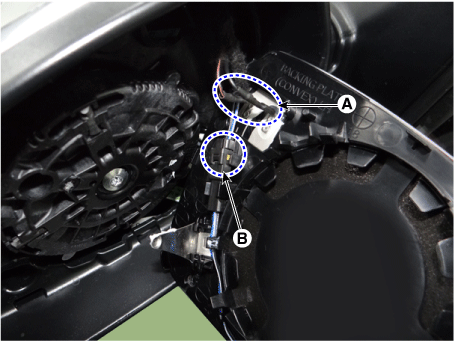

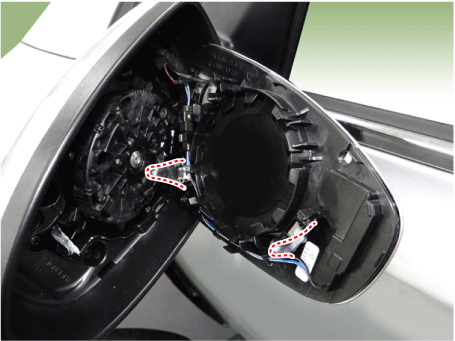

Disconnect the heater connectors (A) and BCW indicator connector (B) from the mirror.

Installation
1.

Install in the reverse order of removal.

Inspection

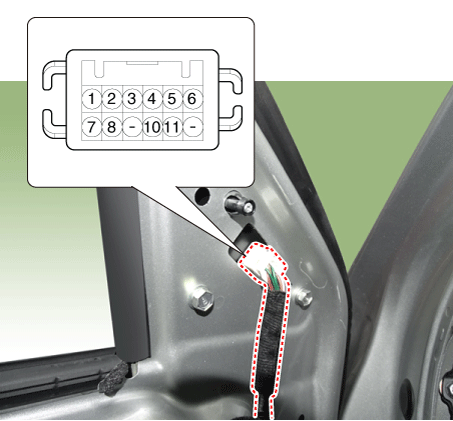

1.

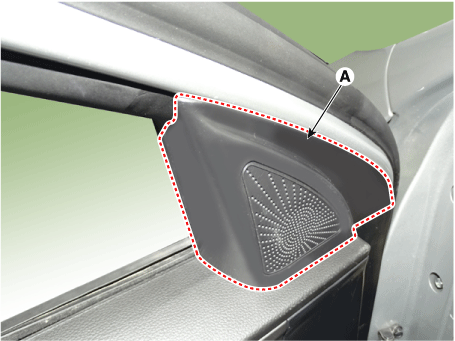

Remove the quadrant cover (A).

2.

Check that the mirror operates properly as shown in the below table.

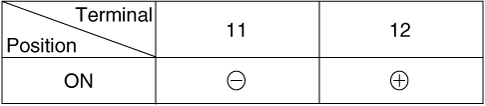

Blind-Spot Radar Switch
