Kia Forte: Restraint / Airbag Module
The airbag module disposal procedure
| The airbag module disposal procedure |
If equipped with an airbag to scrapping the equipment, such as airbags and safety
belt pretensioners deploy a vehicle airbag device should be sure first. In addition,
when to deploy the air bag device and to be deployed by a qualified technician to
an airbag device used it should not be mounted on different vehicles, so re-use
is not possible.
| – |
If you do not deploy the airbag to be deployed in an accident,
it may cause serious injury, it must be discarded after deployment.
|
| – |
When the vehicle is disposed of the air bag module is to be developed
in the state in principle, installed in the vehicle. Except unavoidable
it does not remove the air bag module.
|
| – |
If the air bag due to the repair / replacement (accident repair,
warranty repair, etc.) Remove the airbag module in the vehicle it
should be deployed outside the vehicle by reference to the relevant
instructions.
(It can lead to vehicle damage when to deploy the air bag module
within the vehicle.)
|
| – |
The airbag module does not decompose
|
| – |
The airbag module from being damaged.
|
| – |
Do not drop the air bag modules.
|
| – |
The airbag module is deployed it must be carried out on flat
ground with no risk factors.
|
| – |
When deploying the airbag device and an operation on at least
7m away from the airbag device.
|
| – |
Explosions carried out in a place that does the damage go around
because it occurs when the airbag device is deployed.
|
| – |
Because smoking can cause the air bag module during re-expansion
is carried out in a place without proper ventilation and smoke detector
in the vicinity.
|
| – |
When deploying the airbag device, always use the specified special
tools, carried out in the absence of electrical noise
|
| – |
Always work when deployed protective gloves, safety glasses,
wear earplugs
|
| – |
When the airbag device is deployed so very hot to touch and heat
and then passed on for at least 30 minutes to cool
|
| – |
Do not enter the water to the deployed air bag module.
|
| – |
Discard the deployed air bag module securely sealed and then
placed in a sturdy plastic bag.
|
| – |
Deployment, Wash your hands with soap and water after repackaging
and disposal operations are completed.
|
|
The airbag module Disposal Tools and Equipment Needed
shape
|
designation
|
Remarks
|
|
|
Gloves
|
|
|
|
Goggles
|
|
|
|
Earplugs
|
|
|
|
Wheel rims equipped with tires 2
|
(Top / bottom)
|
|
|
Waste tire wheel rim is not mounted 3
|
(middle)
|
|
|
Rope Strap / Ratchet Strap
|
(Equipment used to connect the airbag module and the tire according to the
deployment procedure described)
|
|
|
12V battery
|
|
Deployed within the vehicle
| 1. |
Turn the ignition switch to the battery (-) Remove the terminal and wait
at least 3 minutes or more.
|
| 2. |
Make sure that each of the airbag device is mounted securely
|
| 3. |
The following should be ready to deploy the air bag device.
| (1) |
Remove the 2-pin connector of the air bag to be deployed inside
the vehicle
|
| (2) |
Connect airbag adapter only.
| •
|
Remove the 2-pin connector on the driver's airbag and
connect the adapter for deployment to Replace the steering
wheel.
|
|
|
| 4. |
The operator is positioned away from the vehicle at least 7m.
|
| 5. |

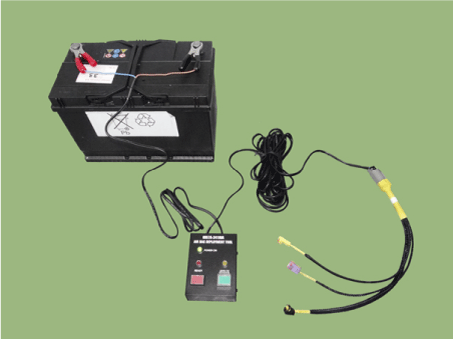

Connect the special tool (0957A-34100A) for airbag deployment and the
deployment adapters for connection to an external battery for deployment
| (2) |
special tool for airbag deployment (0957A-34100A)
|
| (3) |
Adapter for deployment
| –
|
Driver Airbag, safety belts, passenger airbags, side
airbags and curtain airbags pretensioner, anchor pretensioner
(0K57A-3U100A)
|
|
|
| 6. |
By operating the switch of a tool for deploying the air bag deployment
thereby the air bag device.

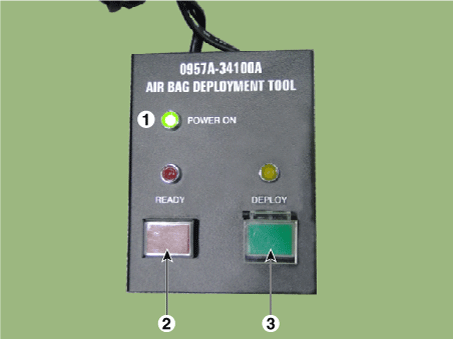

| (1) |
When the top connected to a battery (12V), the POWER ON (1) is
on.
|
| (2) |
If, hold down the READY (2) READY (2) is lit, press DEPLOY (3)
thereby deploying the airbag.
|
When the air bag is great visually check that the noise
generated when deployed, expanded and contracted sharply
after slowly.
|
|
|
| 7. |

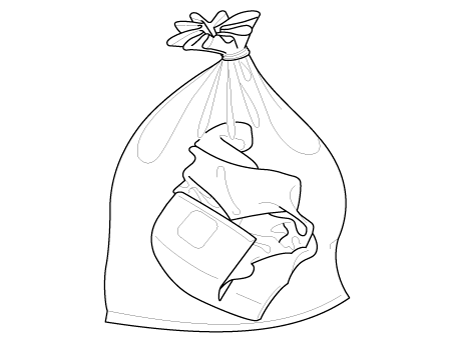

The airbag deployment is thus discarded after putting in a sturdy plastic
bag and securely sealed
|
Deployment in a vehicle outside
| 1. |

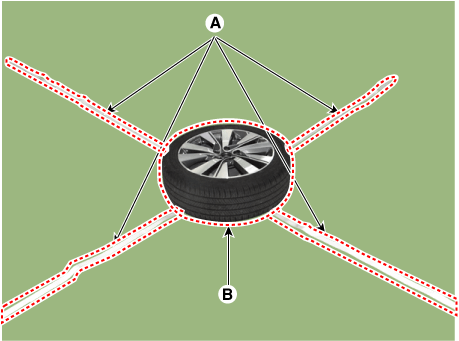

The wheel is equipped with a rope Thai after the (A) into a cross unfolded
on the floor (B) Place the bottom.
|
| 2. |

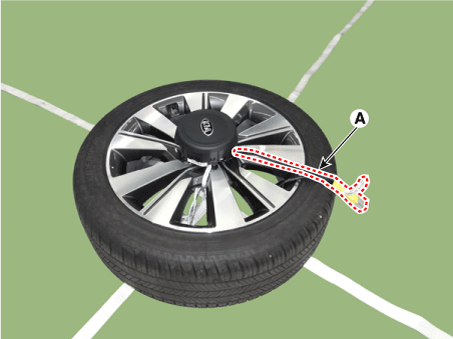

Fit the air bag module / pretensioner deployment adapter (A) (0K57A-3U100A).
|
| 3. |

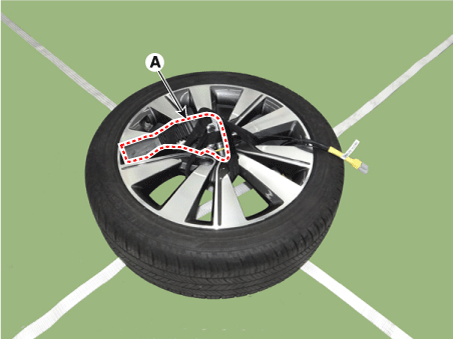

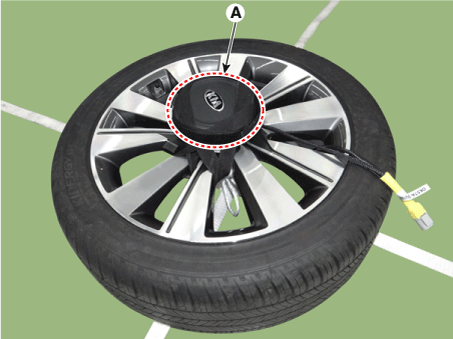

To secure the air bag module / pretensioner (A) to the wheels.
[Airbag module]
|
The airbag module is equipped with the side to be deployed facing
up
|
[Pretensioners]
|
The anchor pretensioner mounted towards the bottom end of the
piston enforcement officers.
|
|
| 4. |

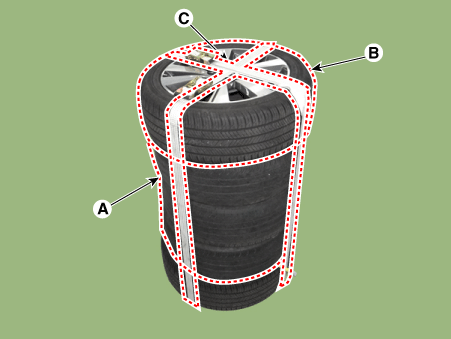

Raise the three tires (A) Increase the tire (B) mounted on the wheel
thereon.
|
| 5. |
Using the ratcheted straps (C) to secure the tire.
|
| 6. |

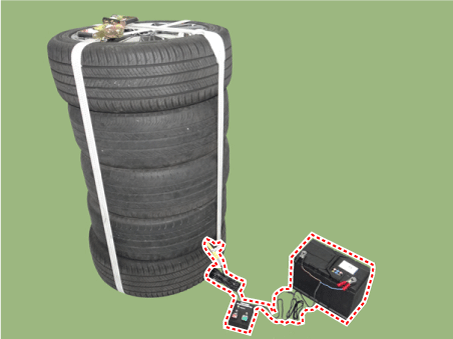

After connecting the battery, connect the air bag deployment tool for
(0957A-34100A) on the deployment adaptor (0K57A-3U100A)
|
| 7. |

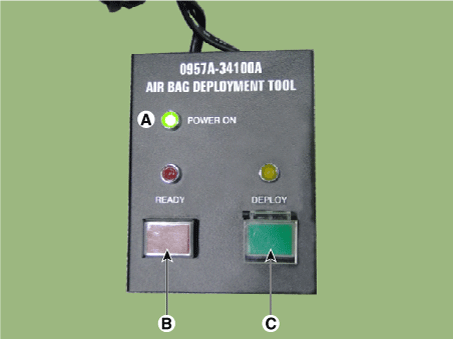

When after connecting the battery to the airbag deployment tools for
lighting POWER ON (A), press the READY (B) by pressing the DEPLOY (C) thereby
deploying the airbag.
|
When the air bag is great visually check that the noise generated
when deployed, expanded and contracted sharply after slowly.
|
|
| 8. |
Safely sealed into the deploying air bag in a sturdy plastic bag and
then superseding
|
