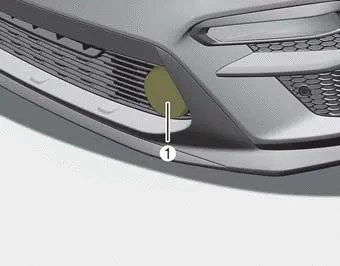

Day time running lamp (Bulb type) replacement

If the Day time running lamp (DRL) (1) does not operate, have the vehicle checked by an authorized Kia dealer.

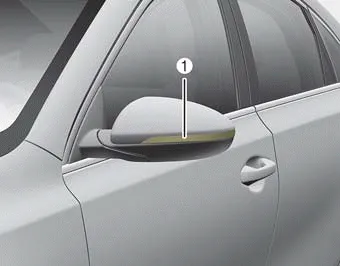

Side repeater lamp (LED type) bulb replacement

If the side repeater lamp (LED) (1) does not operate, have the vehicle checked by an authorized Kia dealer.
The LED lamp cannot be replaced as a single component because it is an integrated unit. The LED lamp has to be replaced with the unit.
A skilled technician should check or repair the side repeater lamp (LED), for it may damage related parts of the vehicle.
Front turn signal lamp bulb replacement If the front turn signal lamp (1) does not operate, have the vehicle checked by an authorized Kia dealer.
1. Remove the lamp assembly from the vehicle by prying the lens and pulling the assembly out. 2. Disconnect the bulb electrical connector. 3. Separate the socket and the lens parts by turning the socket counterclockwise until the tabs on the socket align with the slots on the lens part.
Turn the ignition switch to ACC so the steering wheel isn’t locked. Place the transmission shift lever in N (Neutral). Release the parking bake. Press the brake pedal with more force than normal since you will have reduced brake performance.
Exterior general caution It is very important to follow the label directions when using any chemical cleaner or polish. Read all warning and caution statements that appear on the label. Finish maintenance Washing To help protect your vehicle’s finish from rust and deterioration, wash it thoroughly and frequently at least once a
