Components and components location

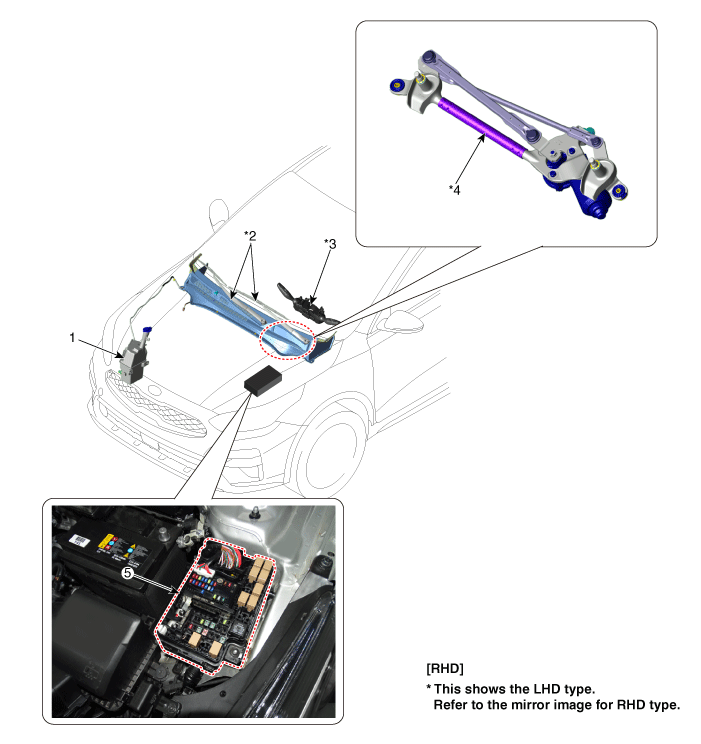

Component Location

1. Washer reservoir & Pump assembly
2. Wiper arm & blade
3. Multifunction switch

4. Wiper motor & linkage assembly
5. Wiper/Washer relay

Sunroof Motor

Repair procedures Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the overhead console lamp. (Refer to Lighting System - &q ...

Front Wiper Arm

Components and components location Components 1. Wiper arm & blade (Passenger ) 2. Wiper arm & blade (Driver) 3. Wiper arm cap 4. Wiper motor &am ...
