Kia Forte: Blind-Spot Radar / Blind-Spot Radar Switch

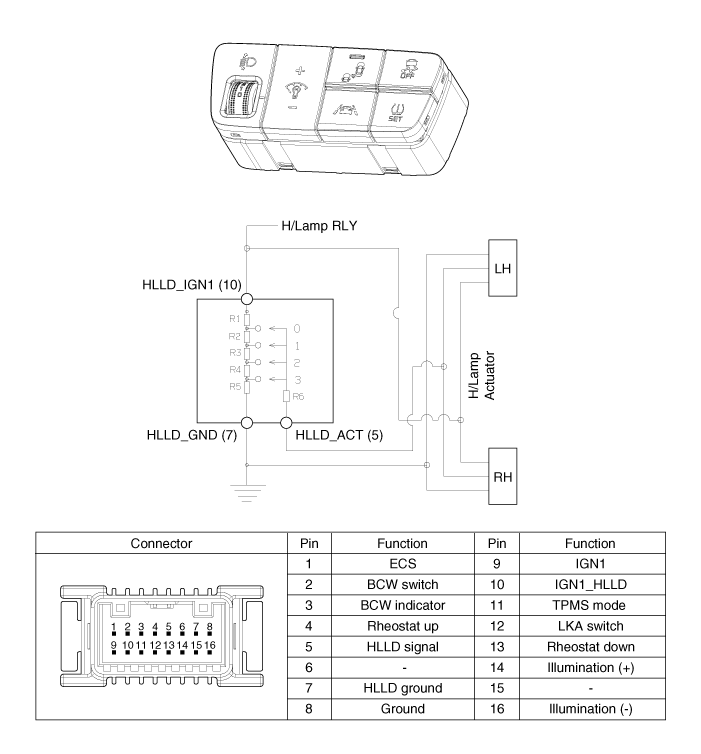

Schematic diagrams
Repair procedures
1. |
Disconnect the BCW switch connector from the side crash pad switch.
|
2. |

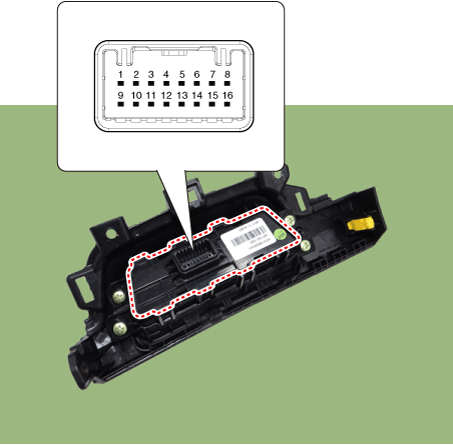

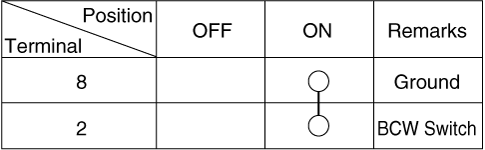

Operate the BCW switch, then check for continuity between terminals and
BCW switch connector.
|
1. |
Disconnect the negative (-) battery terminal.
|
2. |
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
|
3. |

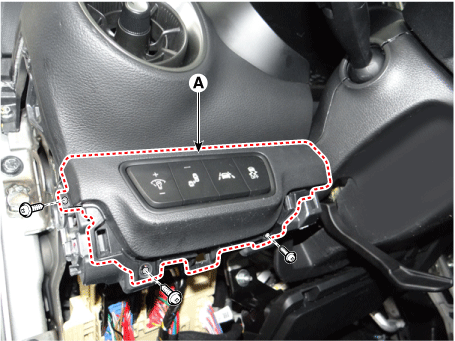

Remove the side crash pad switch panel (A) after loosening the mounting
screws.
|
4. |

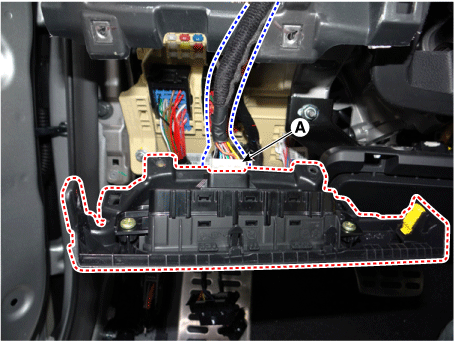

Disconnect the side crash pad switch connector (A).
|
5. |

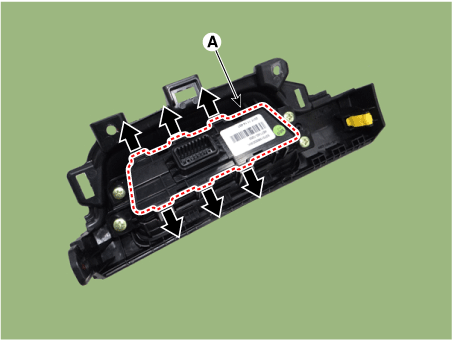

Remove the side crash pad switch assembly (A) from the side crash pad
switch panel.
|
1. |
Install in the reverse order of removal.
|
Components and components location
Components Location
[4DR]
1. Blind-Spot Radar Unit (Master)
2. Blind-Spot Radar Unit (Slave)
...
Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove mirror (A) to the direction as shown in the picture using (- ...
